Combined 15KW IP54 20 Hp Air Compressor With Dryer And Line Filters
20HP Combined Screw Air Compressor :Air Dryer, air receiver tank, line filters
All parts combined together, no need worry about the installation
Economical 15kw 20HP combined Screw Air Compressor,JUCAI screw compressor Durable Air dryer Screw Compressor Combined
Specifications
| Model | JCG20 |
| Flow m³/min | 1.28 |
| Pressure bar | 16 |
| Power (kw/hp) | 20/15 |
| Starting mode | Variable frequency starting |
| Volt/Hz | 380V/190~327Hz |
| Dimension (L x W x H mm) | 1855 x820 x 1695 |
| Weight (kg) | 410 |

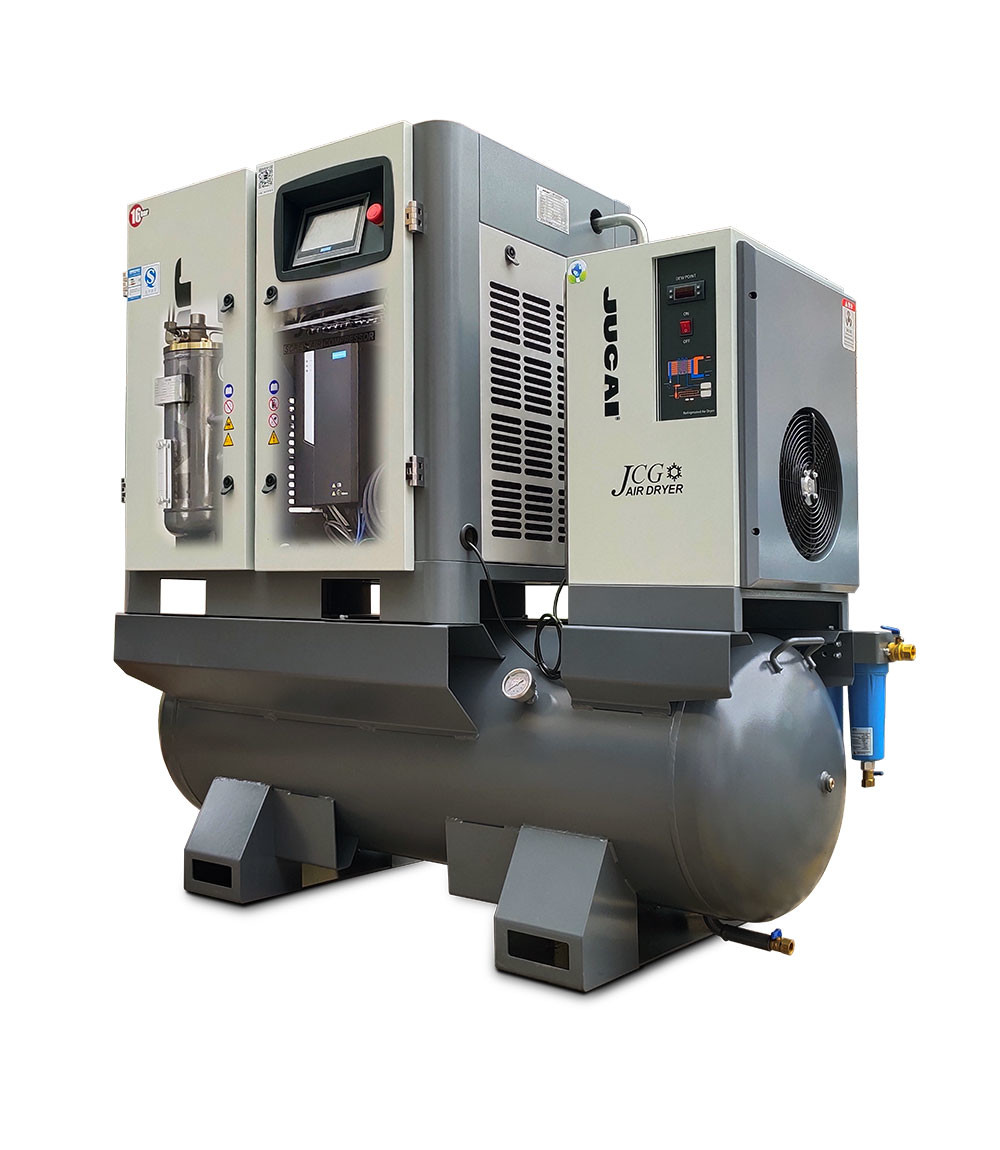

Combined Screw Air Compressor

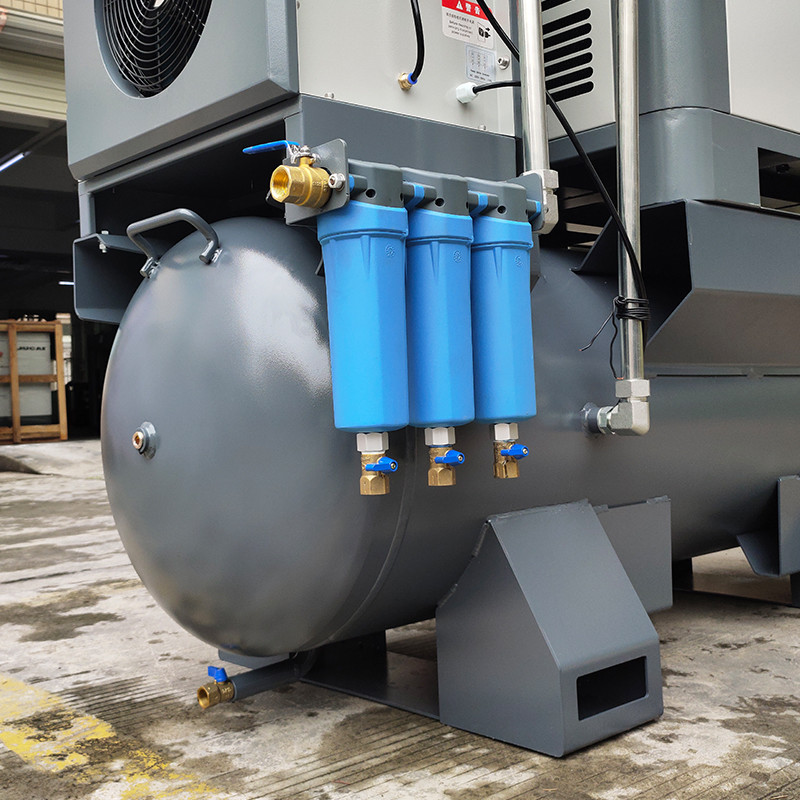

The combined screw air compressor integrates the parts including screw compressor, air dryer, three piece line filters and air tank
POWER: 20HP/15KW+400 LITERS Air receiver tank
> High Efficiency Performance > Low Noise Screw Compressor
> Reliable Quality > 3-in-1 Package, Convenience
High efficiency all copper motor
IP54, insulation class F, class B temperature, continuous operation design
High strength fuselage
1mm high strength steel plate, fully protect equipment parts
Aluminum alloy plate exchanger
Low air resistance, corrosion resistance, full heat exchange, 35% energy consumption reduction
high-grade frequency converter
Top choice of compressor industry in the world
Powerful main components
Front and rear 4-bearing design, 8-bearing operation, more smooth cutting, more flat section
16Kg Constant pressure gas supply
It can provide 16KG continuous constant pressure gas supply, eliminate pressure difference between loading and unloading, and improve production efficiency
361-418v wide voltage design
Wide voltage range to ensure continuous air supply
high efficiency air dryer
High air quality, ensure pressure dew point, protect laser lens and cutter head
built-in The drainage device
Reduce the load of air dryer and filter to ensure air quality
Italian brand filter
Provide clean air source for laser cutting, effectively protect the lens of cutting machine, reduce pressure difference and reduce energy consumption
